Earth Borehole Drilling Machine Custom Wireline Double Core Barrel

Name: Earth Borehole Drilling Machine Custom Wireline Double Core Barrel
Brand: Gold
Price: 1 USD

China Earth Borehole Drilling Machine Custom Wireline Double Core Barrel wholesale

Brand Name : Gold

Model Number : NQ

Place of Origin : Chongqing, China

MOQ : 1 set

Price : Negotiated

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1 set per 5 days

Delivery Time : 5-8 working days

Packaging Details : Carton

Product Name : Wireline Double Core Barrel

Item : AQ

Bit Std : AQ

Application : drilling rig accessory

Reamer Std. : AQ

Customization : Custom

Bit OD（mm） : 47.6

Bit ID（mm） : 27.0

Contact Now

Wireline Double Core Barrel For Borehole Drilling Machine

A wireline core barrel is a tool used in geological and mining exploration to extract core samples from the earth. It consists of a cylindrical barrel with a cutting bit on the bottom that is lowered into the ground and rotated to cut a cylindrical core sample. The core is then lifted to the surface by a wireline, which is a thin cable that can be easily raised and lowered. The wireline core barrel is often used in situations where it is important to retrieve a continuous sample of the subsurface, such as in mineral exploration, oil and gas drilling, and geotechnical investigations.

o.	Std.	Item	Bit Std.	Reamer Std.	Bit OD(mm)	Bit ID(mm)
1	AQ	1.5M double tube core barrel	AQ	AQ	47.6	27.0
2	BQ	3M double tube core barrel	BQ	BQ	59.5	36.3
3	NQ	3M double tube core barrel	NQ	NQ	75.3	47.6
4	HQ	3M double tube core barrel	HQ	HQ	95.6	63.5
5	PQ	3M double tube core barrel	PQ	PQ	122.0	85.0
6	SQ	1.5M double tube core barrel	SQ	SQ	147.6	102.0
7	SQ	3M double tube core barrel	SQ	SQ	147.6	102.0

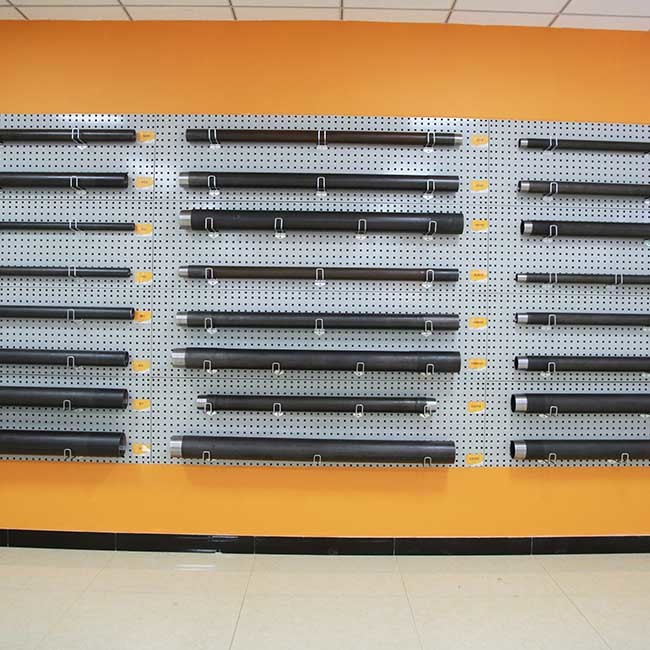

Product Image

Earth Borehole Drilling Machine Custom Wireline Double Core Barrel
