WDJD-4 Multi-Function 2/3D Resistivity&IP Meter Electrical Resistivity Imaging ERI and VES Vertical Electric Sounding for Underground Water Detecor
The WDJD-3A Multi-Function Digital DC Resistivity/IP Meter is an ideal option for those in need of precise measurements delivered swiftly, reliably, and with great adaptability. Leveraging our profound expertise in design and production, we've created a solution that aligns with contemporary user needs. Moreover, the device's recorded data is compatible with various multi-electrode resistivity software, facilitating easier result analysis.
Main Features and Functions:
- Transmitting unit and receiving unit are of all-in-one design, portable and lightweight.
- CMOS large-scale integrated circuit, special stand-by mode, compact size, low power consumption.
- System turns off WDJD-3A mainframe automatically if there is no operation in 10 minutes.
- High anti-interference performance and precision, integrated with multistage wave filtration and signal enhancement technologies.
- In good condition, multi-electrode imaging function can complete measurement of a 552-data-points cross section.
- Automatically achieving compensation of self-potential, drift and electrode polarization.
- Receiving unit supports transient over-voltage protection, transmitting unit supports
- Over-voltage protection, over-current protection and AB open-circuit protection.
- Measured curve can be plotted through WDJD-3A mainframe.
- Simple calculator fulfills calculation of geometric factor and other calculations on the spot.
Application
Technical Specification
| Receiving |
| Voltage | ± 6 V,±1 % ± 1LSB |
| Measurement accuracy | if Vp≥10mV, ± 5‰ ± 1LSB; if Vp < 10mV, ±1% ± 1LSB; |
| if Vp≥10mV, ± 5‰ ± 1LSB; if Vp < 10mV, ±1% ± 1LSB |
| Input impedance | ≥50MΩ |
| Measurement precision of apparent polarizability | ± 1%± 1LSB |
| SP compensation range | ± 10V |
| Current | 6 A,±1% ± 1 LSB |
| Measurement accuracy | if IP≥10mA, ± 5‰± 1LSB; if IP<10mA,± 1%± 1LSB |
| Suppression | over 90Db for 50Hz industrial frequency (common mode interference or differential mode interference) |
| Transmitting |
| Maximum transmitting power | ±6600W |
| Maximum voltage | ±1100V |
| Maximum current | ±56A (when voltage ≤900V) |
| Pulse width | 1~60s, duty cycle is 1:1 |
| Others |
| Working temperature | -10°C~+50°C (Environmental), 95 %RH |
| Storage temperature | -20°C~+50°C (Environmental) |
| Power supply | internal 12V 9Ah rechargeable battery , lasts for 30 hours (or 12V external power supply) |
| Overall current | ≤55mA |
| Weight | ≤4.5Kg |
| Dimension (LxWxH) | 270mmx246mmx175mm |

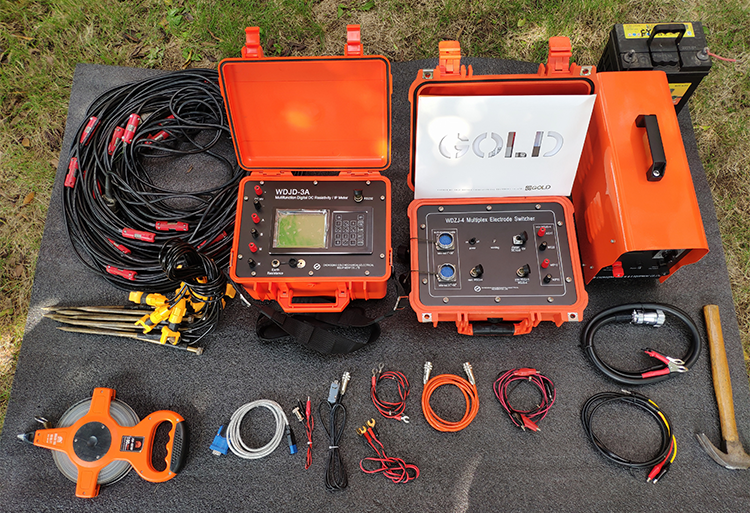

Standard configuration
| No. | Description | Quantity |

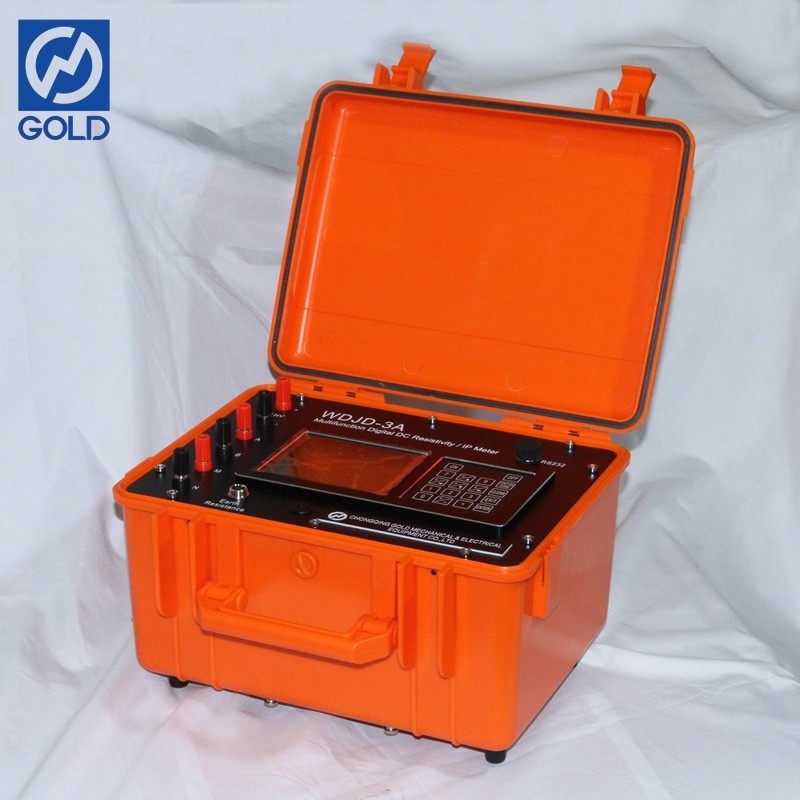

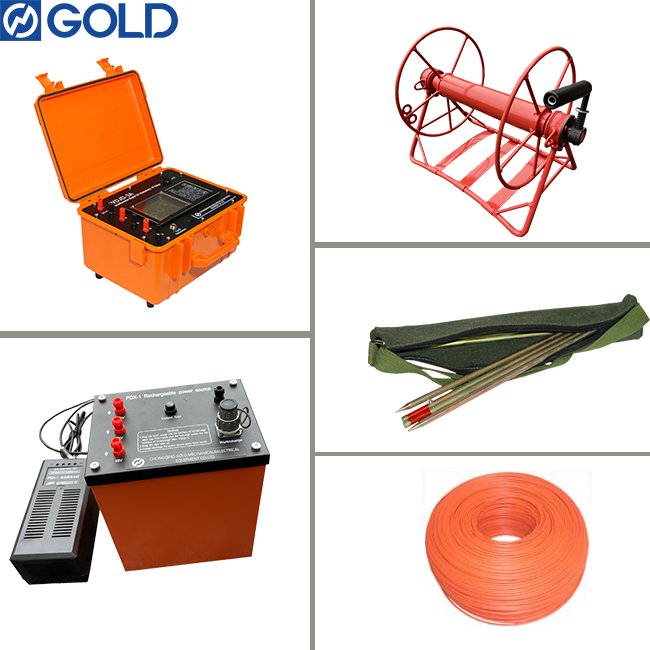

| 1 | WDJD-3A multi-function digital DC resistivity/IP Meter | 1 set |
| 2 | Special communication cable | 1 pc |
| 3 | USB adapter | 1 pc |
| 4 | Document U-disk | 1 pc |
| 5 | WDJD-3A Multi-Function Digital DC Resistivity/IP Meter User’s Manual | 1 pc |
| 6 | Iron electrode | 10 pcs |
| 7 | Solid non-polarized electrode | 2 pcs |
| 8 | Rearth testing wire | 1 pc |
| 9 | Knapsack | 1 pc |
| 10 | Straps | 1 pc |
| 11 | Fuse | 10 pcs |

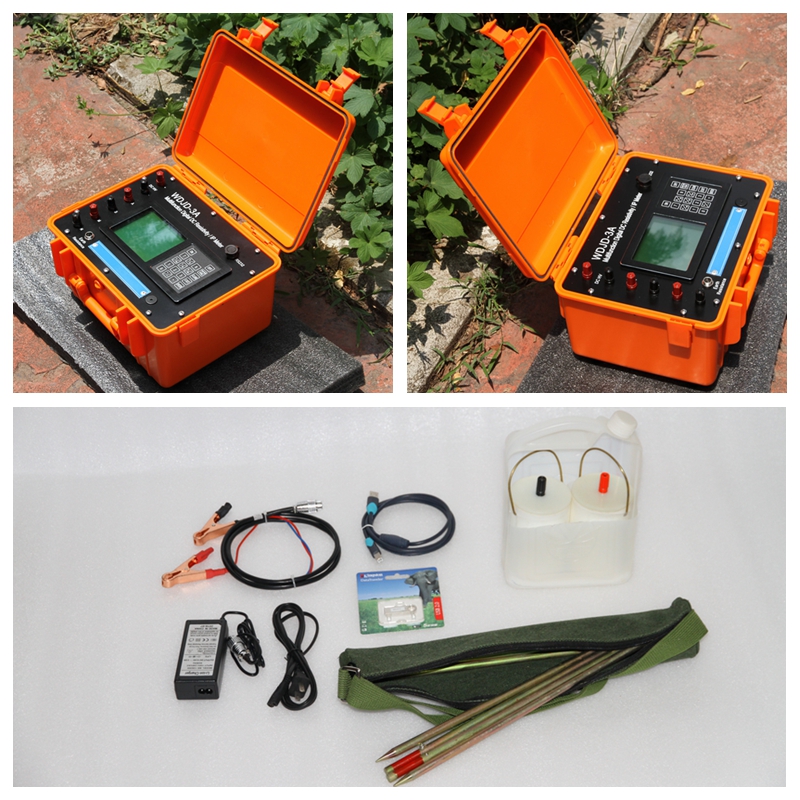

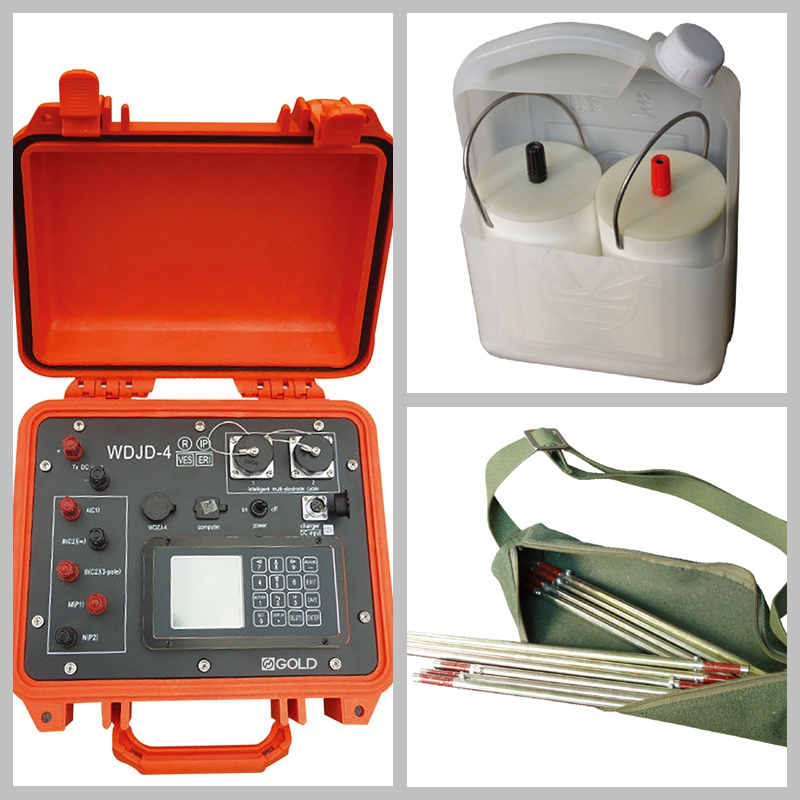

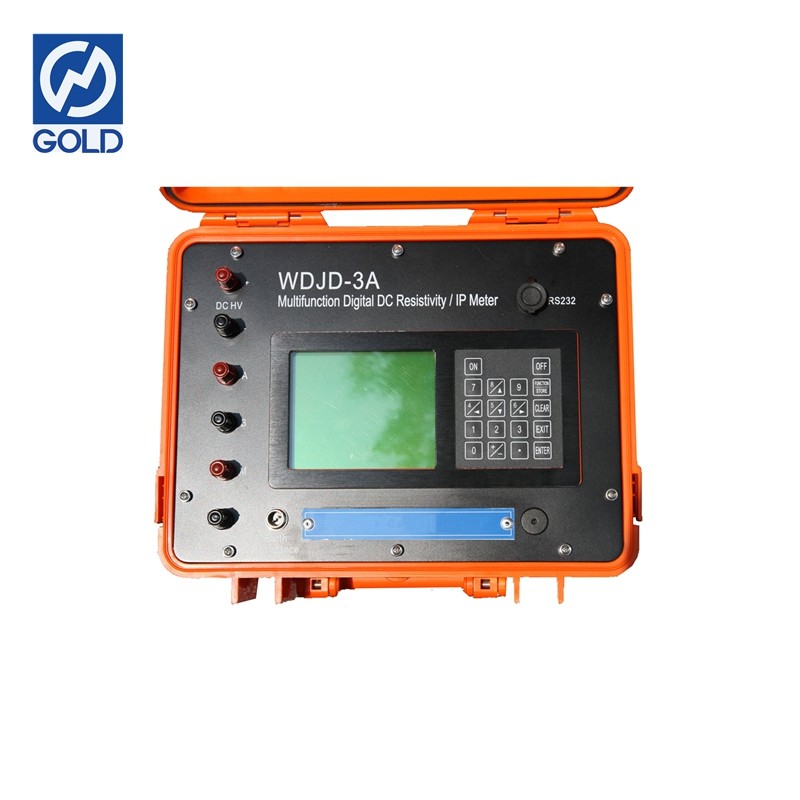

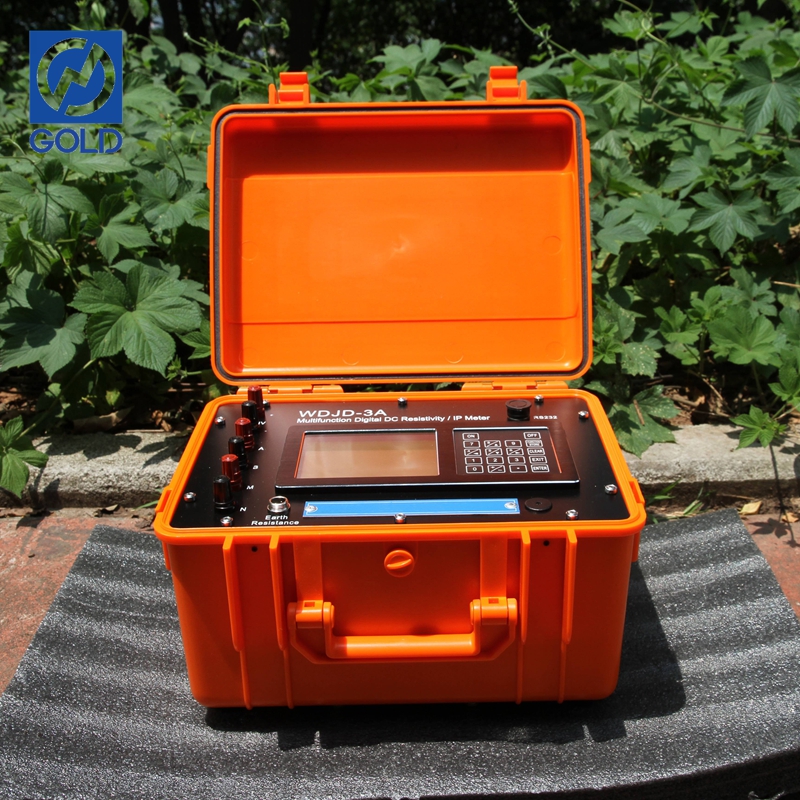

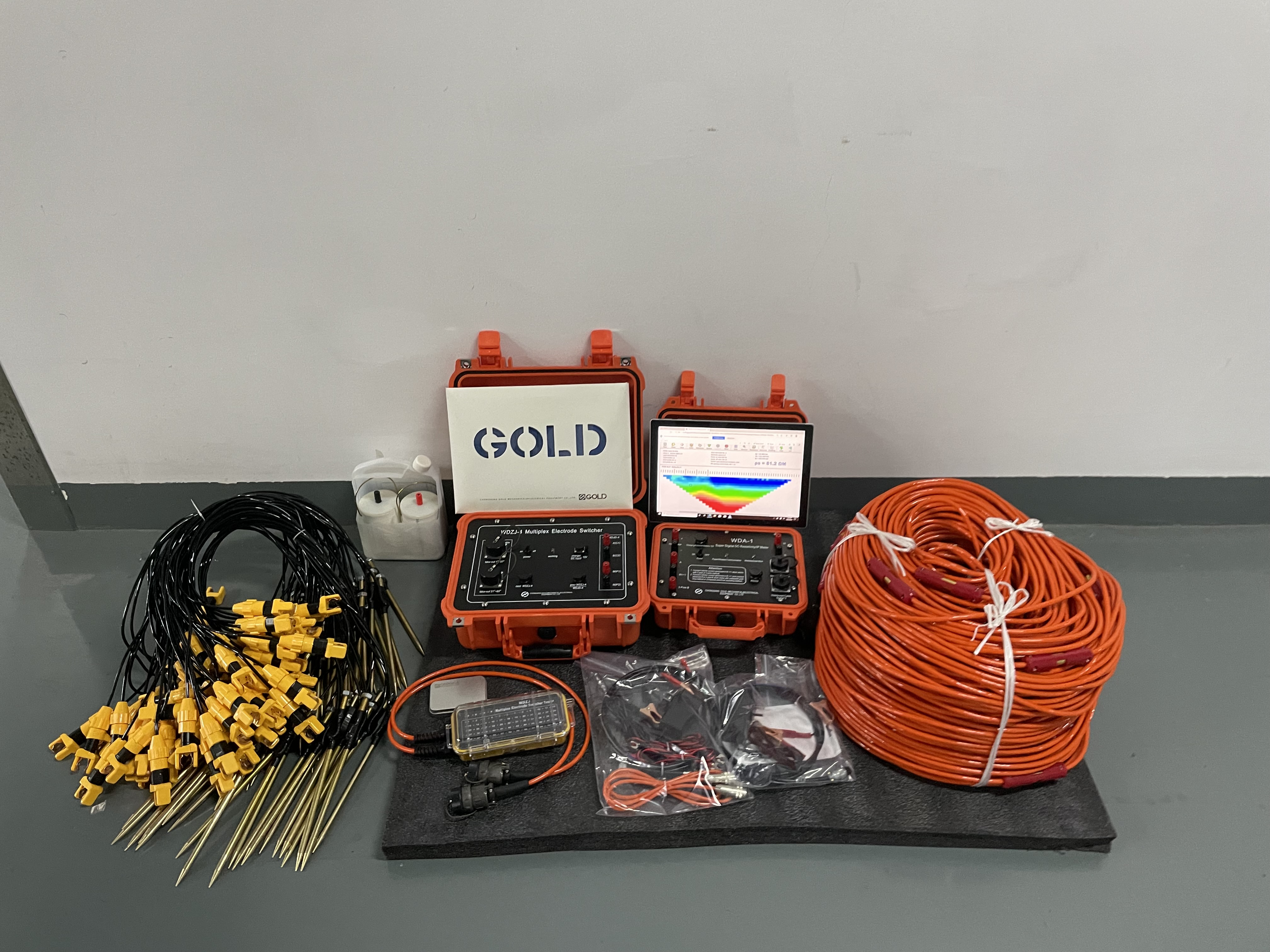

Detailed Images
